Product Details
Basic Information
| Model | Diameter (mm) | Length (mm) | Weight (kg) | Pressure Resistance (MPa) | Operating Temp. (℃) |
| PS2522 | Φ40 | 1500 | 10.00 | 25 | 0~85 |
Description

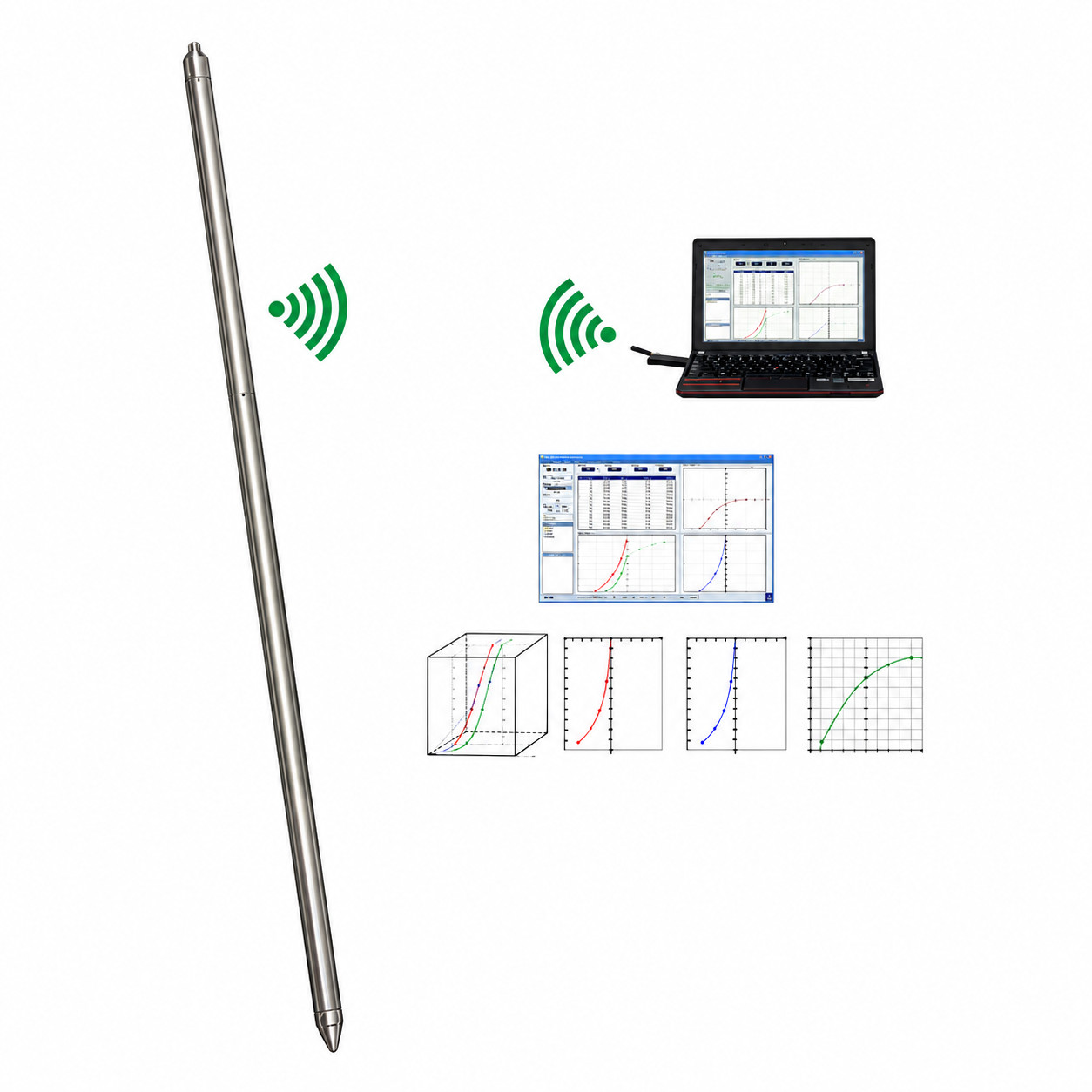

This product is a new type of inclinometer using a high-precision fiber optic gyro. It is a newly designed high-precision digital borehole inclinometer specifically for measuring borehole inclination and azimuth in magnetic mining areas and iron casings. It is used for high-precision measurement of the dip angle and azimuth angle of boreholes in magnetic mining areas, iron casings, or directional holes, while accurately measuring borehole depth.
Integrating sensors, power supply, and data processing, it independently completes measurement of borehole dip and azimuth in single-point or multi-point mode without a cable, completely eliminating the need to transport bulky winches and cables — making operation extremely lightweight.
It is currently widely used in metallurgy, engineering, hydrology, oilfield, coal field, and geological borehole logging.
Specification
| Parameter | Dip Angle | Azimuth | Measurement Mode | Data Storage | Wireless Range | Power Capacity |
| Range | 0~50° | 0~360° | Fixed-point | 1,000 sets | ≥10 m | 80 points |
| Accuracy | ≤0.2° | <±2.0° | — | — | — | — |
